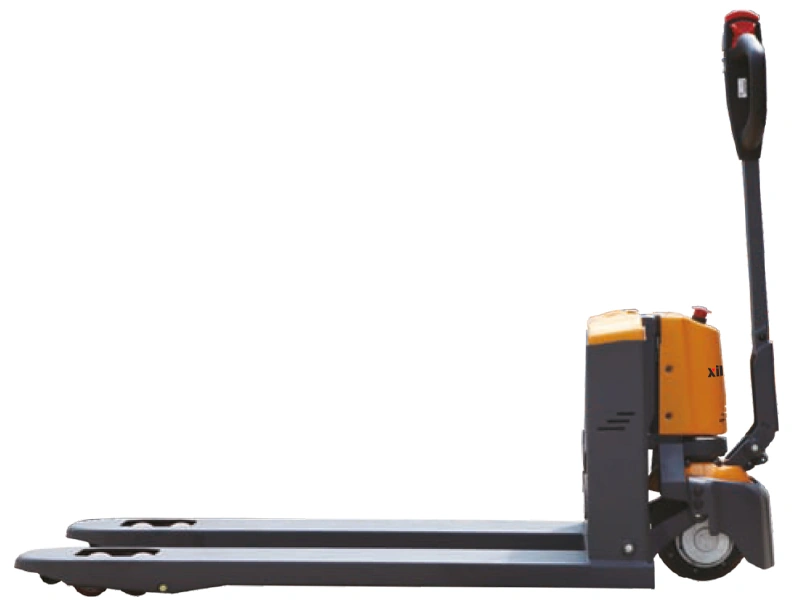

Li-ion Powered Pallet Truck (CBD15W-II Li/CBD20W-II Li) 1500-2000 kg

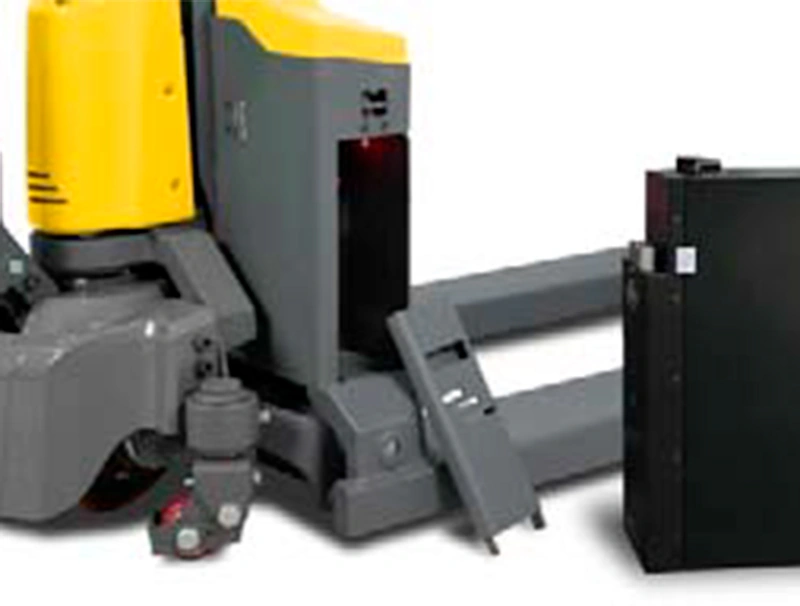

This is the pallet truck for operations that treat the battery as a consumable: instead of parking the truck at a charger, the operator slides the side-mounted lithium pack out by hand and pushes a charged one in. The swap takes around ten seconds and needs no tools, so one truck with two packs effectively runs around the clock.

Built for hard use

• Outer covers are steel, not plastic, so a knock from a pallet corner leaves a dent instead of a hole
• One-piece rocker arm stiffens the chassis and keeps the drive wheel pressed to the floor on uneven concrete
• Large-diameter plunger cylinder runs the hydraulics at low pressure, which is what makes pumps of this type last

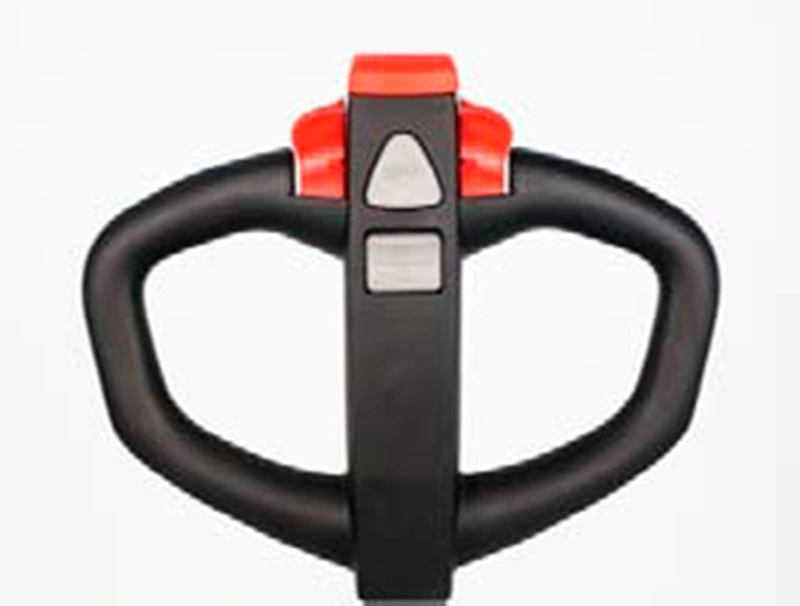

• Handle folds flat and detaches for transport, and the low-speed button lets the truck creep with the tiller upright in tight corners

Two capacities, one footprint

• 1500 kg version with 24 V drivetrain and 0.75 kW motor; packs of 20 to 60 Ah
• 2000 kg version with 48 V drivetrain, 1 kW brushless motor and packs of 20 to 30 Ah
• Both share the 1345-1415 mm turning radius and pass the same 2015 mm aisle with an 800 x 1200 pallet lengthways

Safety equipment

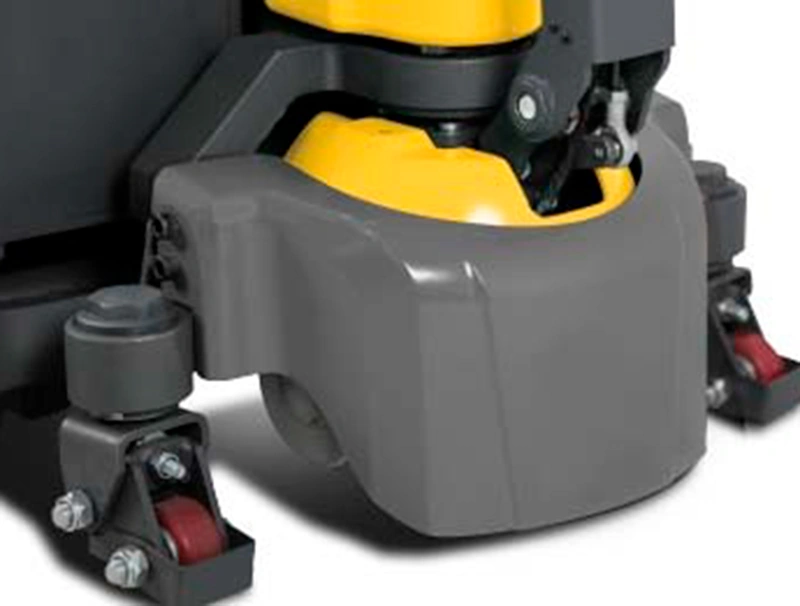

Lifting overload protection, an electrical lift limit at full height and the belly-button emergency reverse come as standard. Guided fork rollers and floating stabiliser wheels are available as options.

Price and delivery

Price on request. This truck is built to order in our supplier's factory, with a typical lead time of 16 to 20 weeks from order confirmation. Contact us for the current quotation, the dimension drawing and the full data sheet for the configuration you need.
