Electric Scale Pallet Truck (CBD15W-EC/CBD20W-EC) 1500-2000 kg

Wherever goods are priced, invoiced or batched by weight, the detour to a floor scale is pure lost time. This truck removes it: the weighing system sits in the fork frame, the reading appears at the tiller, and the pallet is weighed while it is already on its way to the rack or the ramp.

Why the electric base matters

• Electric travel and electric lift, so the operator's effort does not change with the load - important when every pallet also has to be weighed and logged
• Electric braking holds the truck on the spot during the weighing pause
• Tiller works between 700 and 1250 mm, comfortable for operators of any height

Sized like a standard walkie

• 1670-1740 mm overall length and a 1465 mm turning radius, no bigger than a plain electric pallet truck
• Forks 1150 mm (1220 mm option), width across forks 560 or 690 mm for euro and industrial pallets
• 24 V battery: 65 Ah on the 1.5-tonne truck, 105 Ah on the 2-tonne truck

Choosing between the two

The two capacities share dimensions and speeds; the 2000 kg version carries the larger battery and a slightly stronger drive motor. If your pallets regularly exceed 1.5 tonnes, take the CBD20W-EC and keep a reserve.

Price and delivery

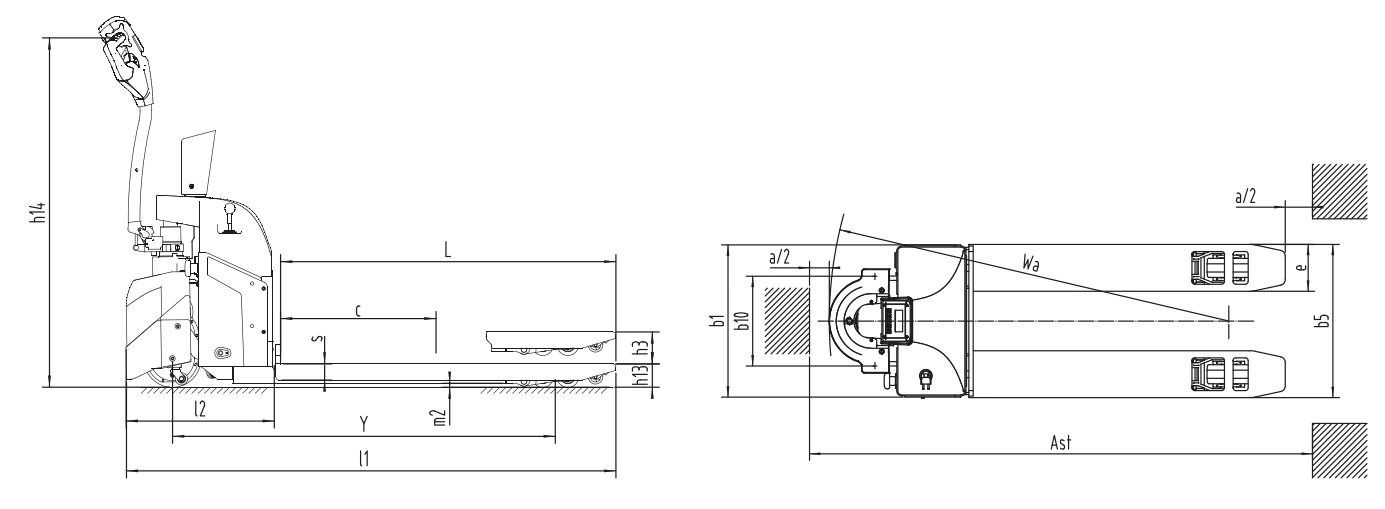

Price on request. This truck is built to order in our supplier's factory, with a typical lead time of 16 to 20 weeks from order confirmation. Contact us for the current quotation, the dimension drawing and the full data sheet for the configuration you need.
