Multi-directional Reach Truck (CQD20-DF) 2000 kg 3000-12500 mm
Price
On request
Direct factory order
— 16–20 weeks · 40% deposit
Direct factory order
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Direct factory order (made to order)
Shipping quoted post-order
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Reach Trucks
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.

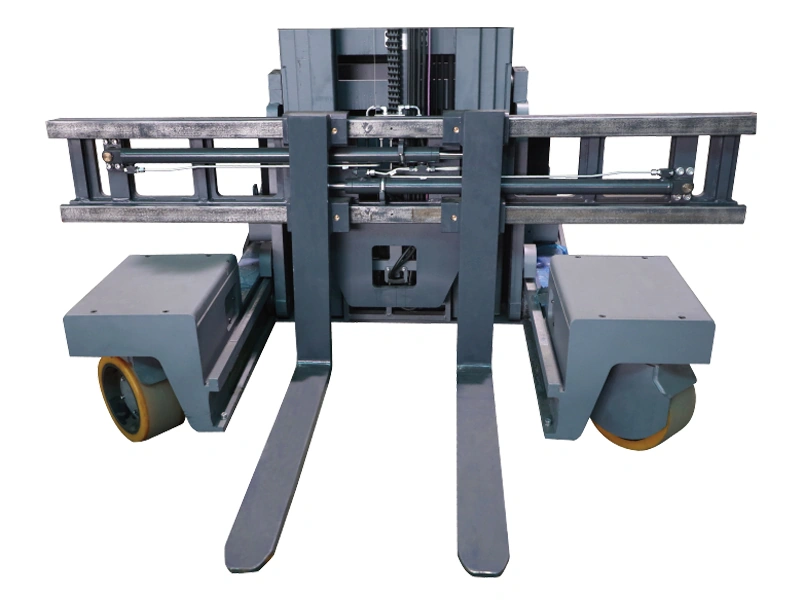

Long loads - profiles, pipes, timber, furniture panels - normally force a choice between wide aisles and a dedicated four-way sideloader. This truck removes the choice: it is a full 2-tonne reach truck that can also translate sideways and turn on the spot around its own centre.
Travel modes
- Longitudinal and lateral driving plus omnidirectional translation of the whole truck
- In-place rotation around the front wheel centre or the truck centre
- Carried crosswise, a six-metre bundle passes through the same 2.9 m aisle as a pallet
As a reach truck
- Thirteen mast options, lift heights 3000 to 12500 mm
- 2000 kg capacity, 600 mm reach, mast tilt 2/4 degrees
- Central control display integrates operator permissions, height positioning, status and fault inquiry
Dimensions
- Overall length 2490 mm, width across chassis 1260/1736 mm
- Service weight about 3800 kg with the 5 m mast
- Turning radius 1820 mm in conventional mode
Price and delivery

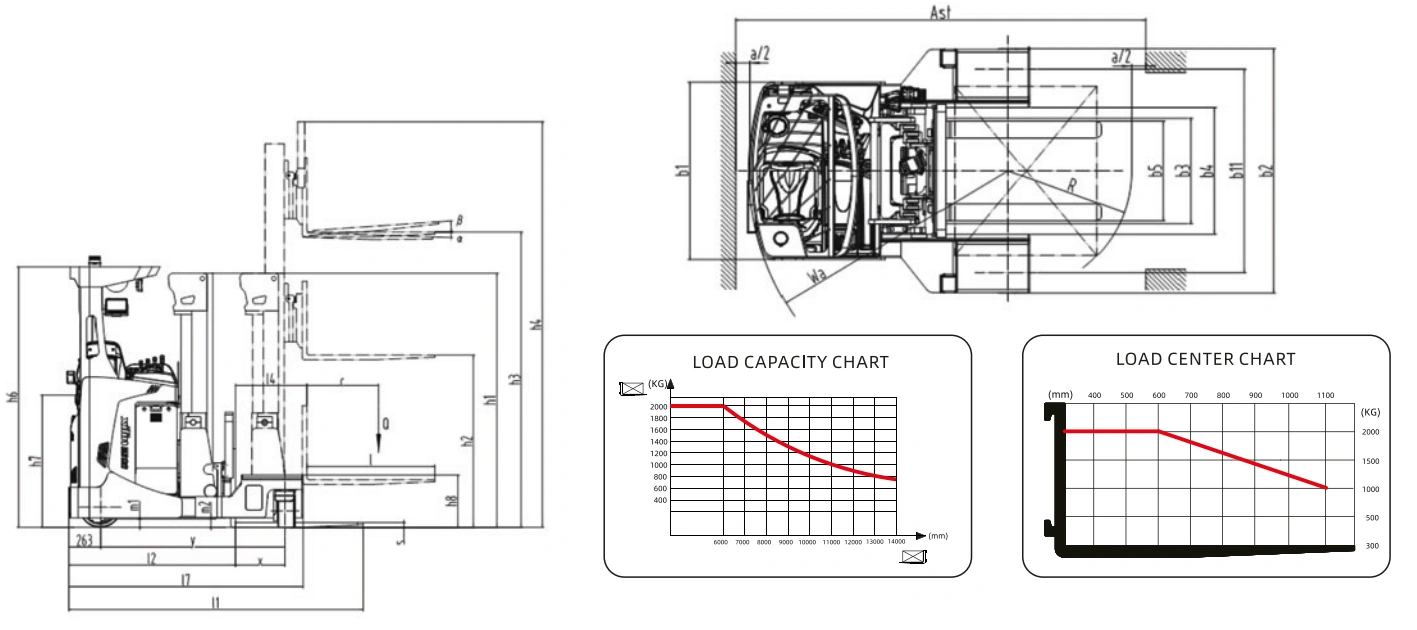

Price on request. This truck is built to order in our supplier's factory, with a typical lead time of 16 to 20 weeks from order confirmation. Contact us for the current quotation, the dimension drawing and the full data sheet for the configuration you need.
Attributes
| Load capacity (Q) | 2000 kg |
|---|---|
| Lift height | 3000-12500 mm (13 masts) |
| Operator type | Seated |
| Drive modes | Longitudinal, Lateral, Omnidirectional, Turn in place |
| Service weight | approx. 3800 kg (5 m mast) |
| Turning radius (Wa) | 1820 mm |
| Fork dimensions (s/e/l) | 40/120/1070 mm |
| Reach distance (l4) | 600 mm |
| Aisle width, 800x1200 lengthways (Ast) | 2930 mm |
| Naming Pending | True |
