Manual Drum Stacker (RVB35) 350 kg 1945-2385 mm

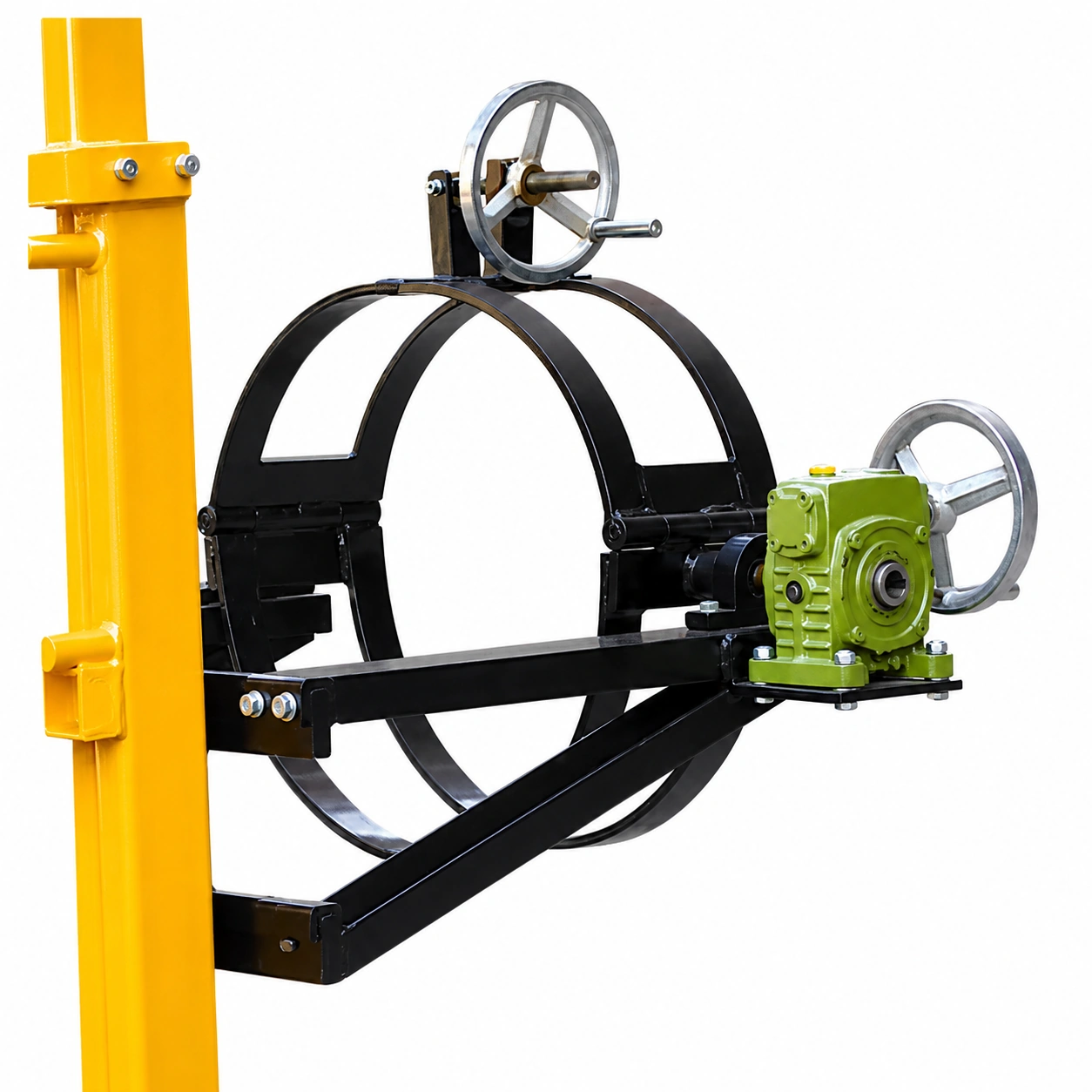

A drum lifter gets a drum off the floor; this one stacks it and empties it. The drum is held in a hinged steel band, tightened by the hand wheel on top of the carrier, and a worm-gear hand wheel on the side rotates the clamped drum under control. With 1945 or 2385 mm of lift a full 350 kg drum reaches the second level of pallet racking or the top of a mixing vessel.

How it works

• Hinged clamp band grips the drum body; the top hand wheel tightens it before the drum leaves the floor
• Worm-gear drive on the side tips and rotates the drum for controlled pouring, holding position when the wheel is released
• Mast lifts by hand pump, straddle legs on castors keep the load between the wheels
• No hydraulic power pack, compressed air or battery to maintain

Two mast versions

• 1945 mm lift with a 1270 mm lowered mast, for stores with low doorways and box vans
• 2385 mm lift with a 1490 mm lowered mast, when the drum has to reach a higher rack level
• Both share the 1580 x 1050 mm footprint and 235 kg service weight

Typical work

• Chemical, paint and lubricant stores stacking and decanting 200 litre steel drums
• Pouring from a drum into a mixing vessel above working height
• Sites where an electric drum handler is not permitted or not worth the investment

Dimensions

Load centre distance is 570 mm and the wheelbase 1115 mm, on 80x36 mm front and 147x40 mm rear wheels. Width over the carrier is 840 mm and its lowered height is 385 mm. Turning radius is 1200 mm and ground clearance under the mast 22 mm.
