Above four metres of lift, a walk-behind stacker stops being comfortable: travel distances grow and the operator spends the shift on foot. The CDD15C puts the operator inside the chassis - standing, protected on three sides, with an overhead guard - and adds the mast heights that pallet stackers normally cannot reach.
Operator compartment
- Electric power steering with height-adjustable wheel and damping, positioned to suit operators of different heights
- Armrests adjust in all directions; the drive wheel auto-centres at power-on
- Multi-function display shows battery, hours and faults
Stacking at height
- Four mast options: 4500, 5000, 5600 and 6500 mm
- Side stabilisers deploy simultaneously and brace the truck while the load is high
- Free lift up to 2240 mm keeps the mast under low doorways during transport
Drivetrain
- 2.2 kW AC drive motor, 8.5 km/h laden and unladen
- 3.2 kW lift motor, 24 V / 400 Ah battery mounted low for stability
- Electromagnetic service brake
Price and delivery

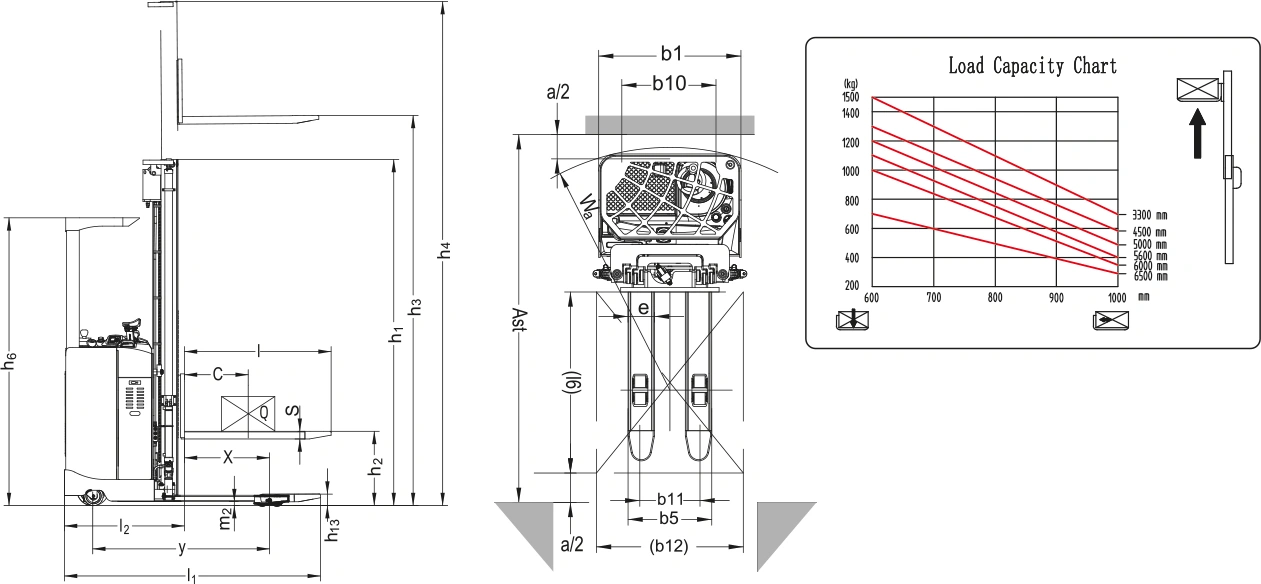

Price on request. This truck is built to order in our supplier's factory, with a typical lead time of 16 to 20 weeks from order confirmation. Contact us for the current quotation, the dimension drawing and the full data sheet for the configuration you need.
Attributes
| Lift height | 4500 mm, 5000 mm, 5600 mm, 6500 mm |
|---|---|
| Load capacity (Q) | 1500 kg |
| Operator type | Stand-in compartment |
| Service weight (with battery) | 1995 kg |
| Fork dimensions (s/e/l) | 60/180/1070 (1150) mm |
| Turning radius (Wa) | 1653 mm |
| Travel speed | 8.5 km/h |
| Battery | 24 V / 400 Ah |
| Motors | Drive 2.2 kW AC, Lift 3.2 kW |
| Steering | Electric power steering (EPS) |
| Naming Pending | True |
