Tri-Lateral VNA Stacker (OPD15) 1500 kg 5000-10500 mm
Price
On request
Direct factory order
— 16–20 weeks · 40% deposit
Direct factory order
Produced to order at the manufacturer’s plant and shipped directly — the factory discount is already included in the price shown.
- Production & delivery: 16–20 weeks
- Deposit at order: 40%
- Balance: 60% before dispatch or collection
Factory-order prices are outside the automatic volume and bundle discount programme. Because production and sea freight are scheduled months ahead, we reserve the right to adjust the balance in the event of significant exchange-rate or container-freight cost changes before dispatch — we will always contact you first. B2B sales only.
Direct factory order (made to order)
Shipping quoted post-order
Shipping estimate
This product
—
Weight
—
Packaging
—
Your cart
—
Select your delivery country for an instant freight estimate.
Categories:
Reach Trucks
Need a tailored offer?
Send us your requirements through the quote form — this product will be prefilled and you can add more items in one request.
Very narrow aisle racking only pays off if the truck can serve both sides of the aisle without turning around. On the OPD15 the fork head does the turning: it swivels and traverses to pick or place a pallet left or right while the chassis stays in line, guided by rollers on rails at floor level.
VNA geometry
- Masts from 5000 to 10500 mm with free lift up to 3170 mm
- Width across guide rolls 1600 mm; lateral reach 1300 mm, 495 mm from the truck centreline
- Swivelling-fork pivot 800 mm ahead of the mast
Operator and drive
- Seated man-down cabin with overhead guard - the operator stays at floor level while the load travels up
- 8.0/8.5 km/h travel, 0.20/0.30 m/s lift laden/unladen
- Service weight 6370 kg on polyurethane wheels
When to choose it
Pick the OPD15 where pallets are full-in, full-out and the priority is storage density; if operators also pick single items at height, look at the man-up OPTS15 in this category instead.
Price and delivery

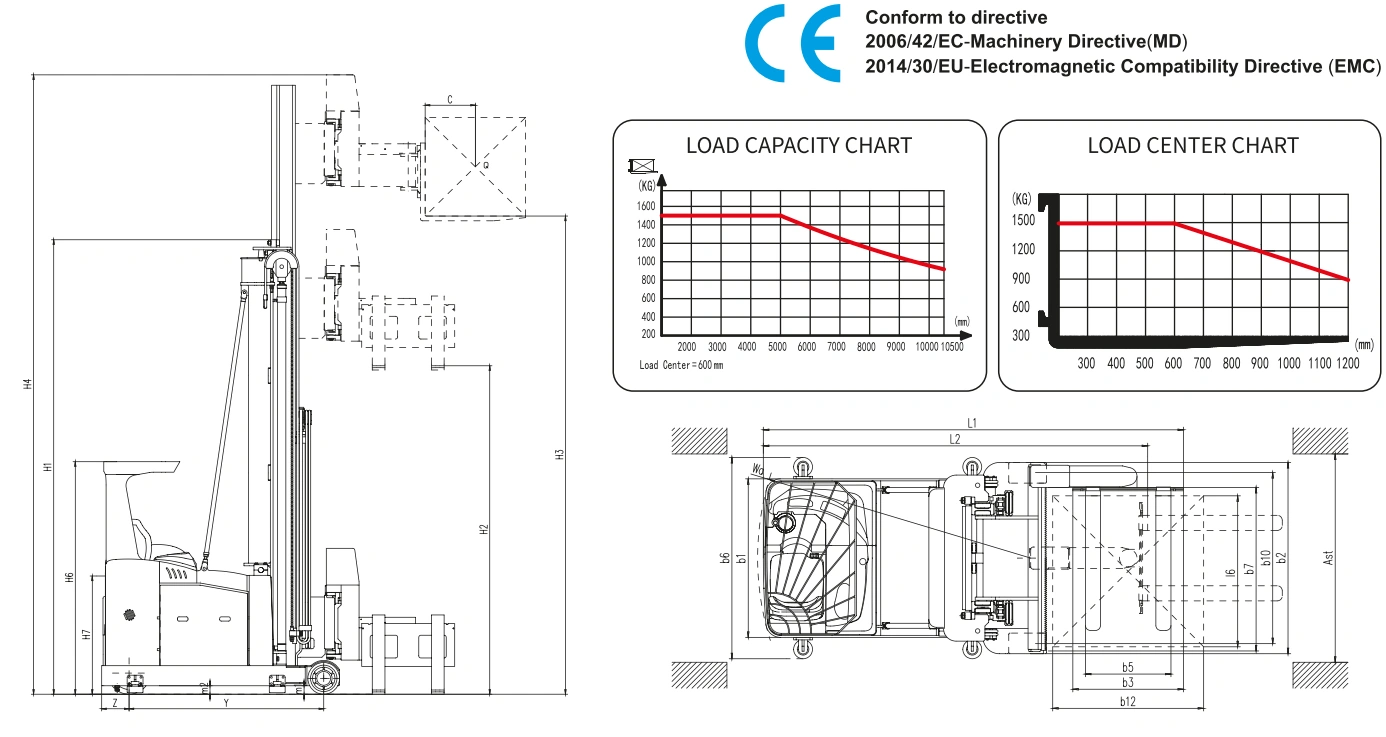

Price on request. This truck is built to order in our supplier's factory, with a typical lead time of 16 to 20 weeks from order confirmation. Contact us for the current quotation, the dimension drawing and the full data sheet for the configuration you need.
Attributes
| Load capacity (Q) | 1500 kg |
|---|---|
| Lift height | 5000-10500 mm (7 masts) |
| Operator type | Seated, man-down |
| Service weight | 6370 kg |
| Width across guide rolls (b6) | 1600 mm |
| Lateral reach (b7) | 1300 mm |
| Fork dimensions (s/e/l) | 45/125/1250 mm |
| Travel speed | 8.0/8.5 km/h laden/unladen |
| Turning radius (Wa) | 2170 mm |
| Naming Pending | True |
