GIS Electric Hoist for Food Industry

GIS electric hoist for the food industry

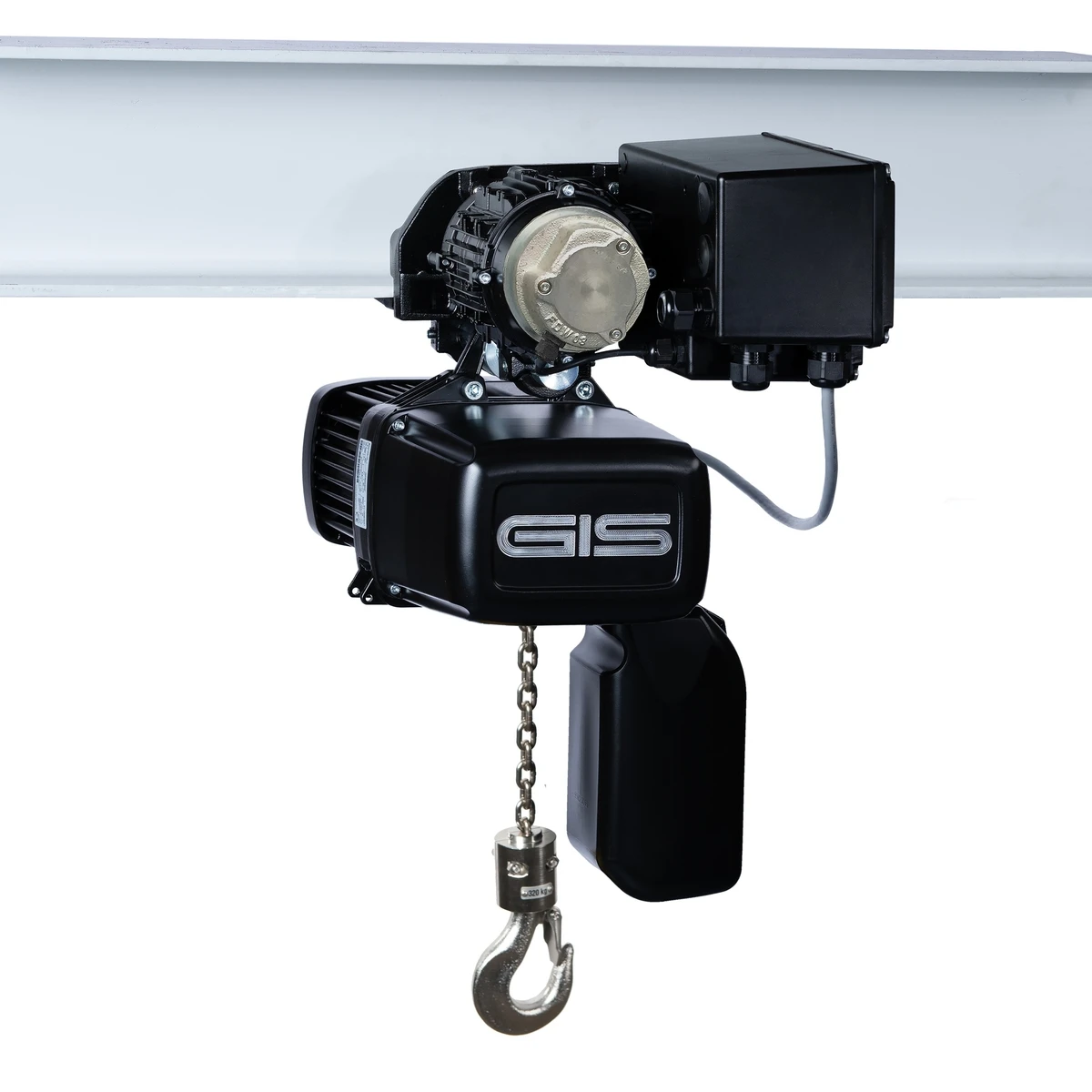

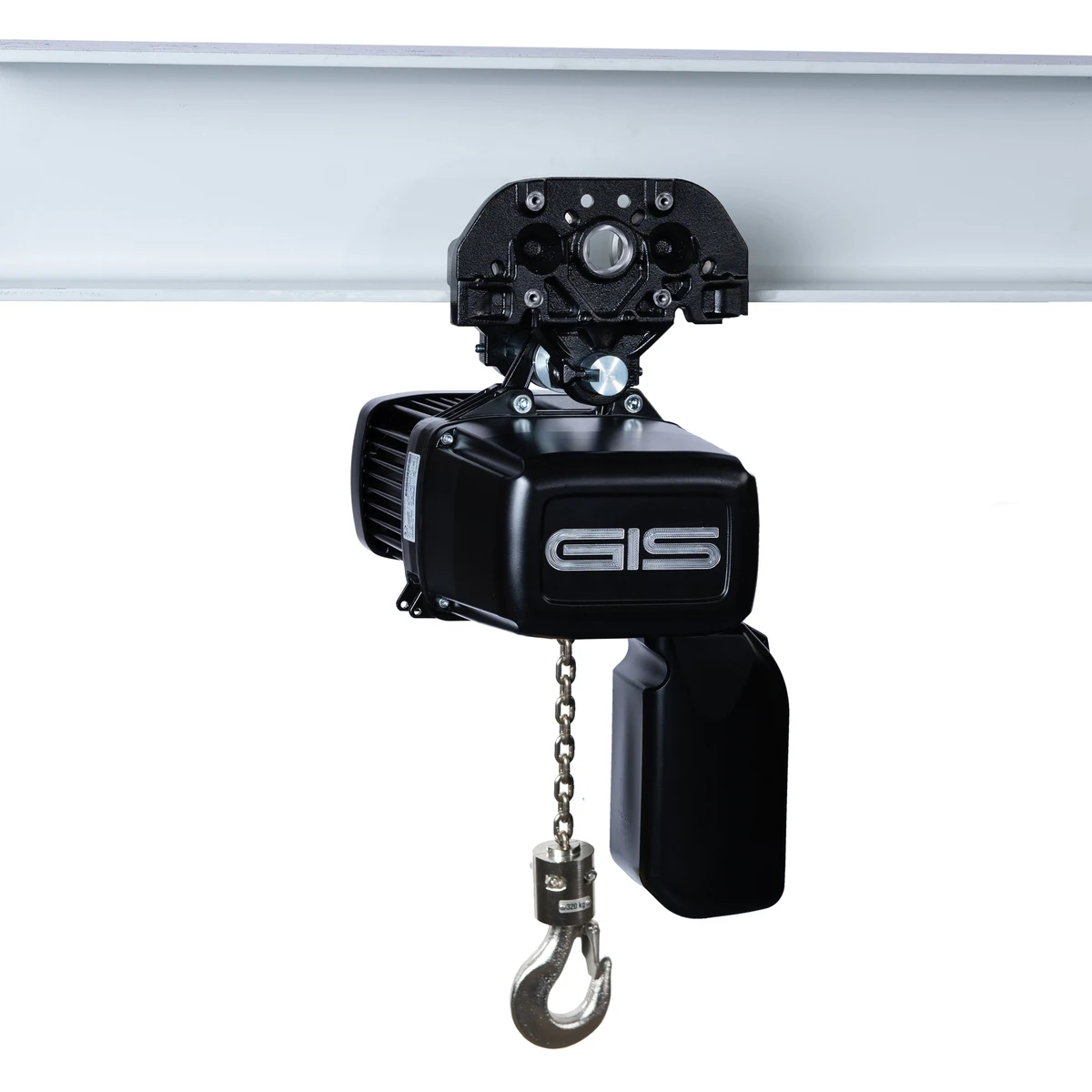

GIS electric chain hoist Food Grade compatible, model GPR500/GPR1000 is suitable for applications in the food, beverage and pharmaceutical industries where impeccable cleanliness is required. Lubricants for greasing the crane are food grade, used on the load chain and in the gearbox, comply with NSF H1 standards for safe use in any facility where accidental contact with the product is possible.

• Load capacity 320kg, 630kg, 1250kg
• intended for work in corrosive environments

Standard features:

• electric chain hoist resistant to corrosion

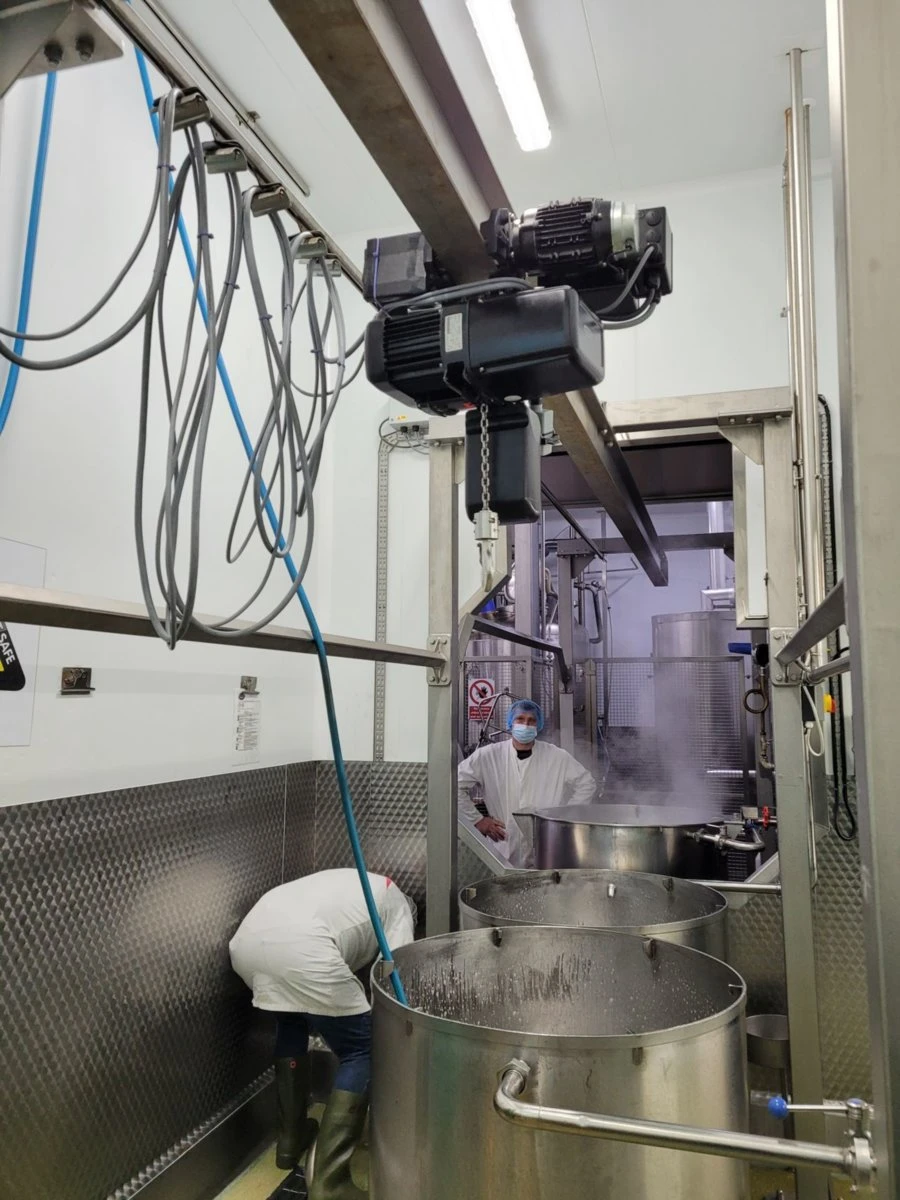

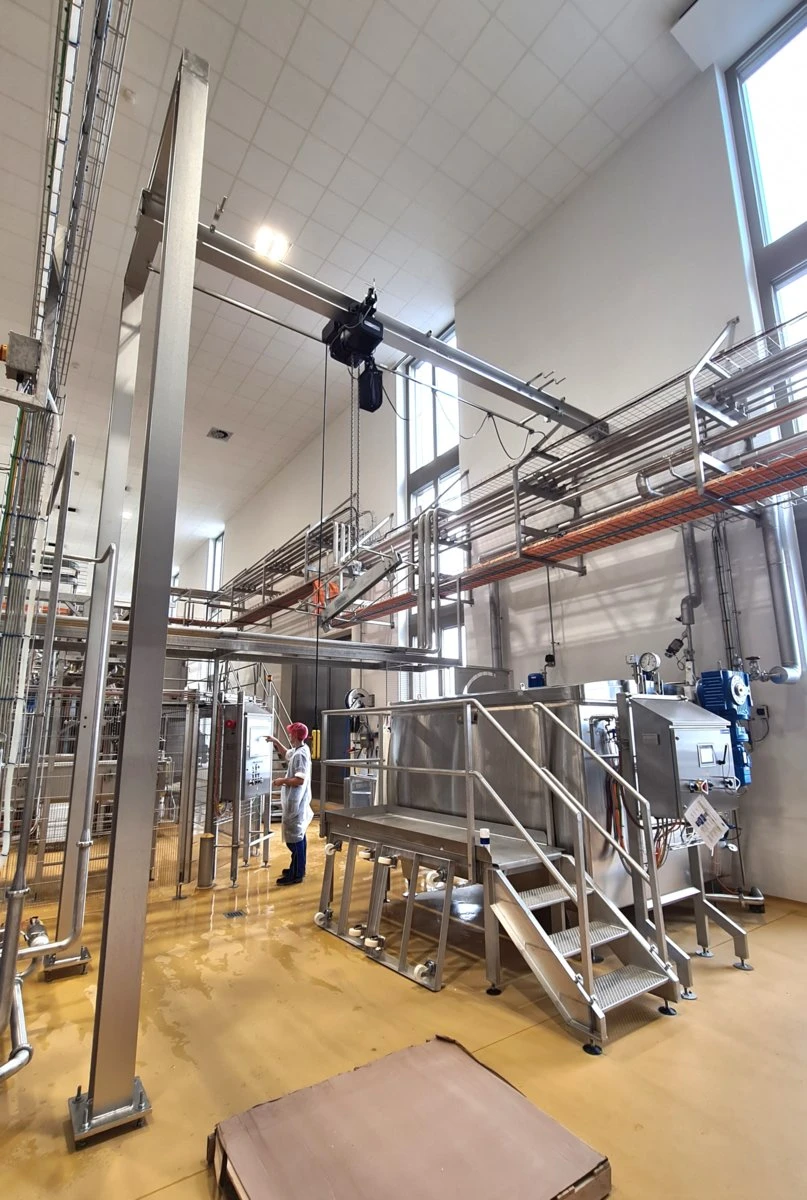

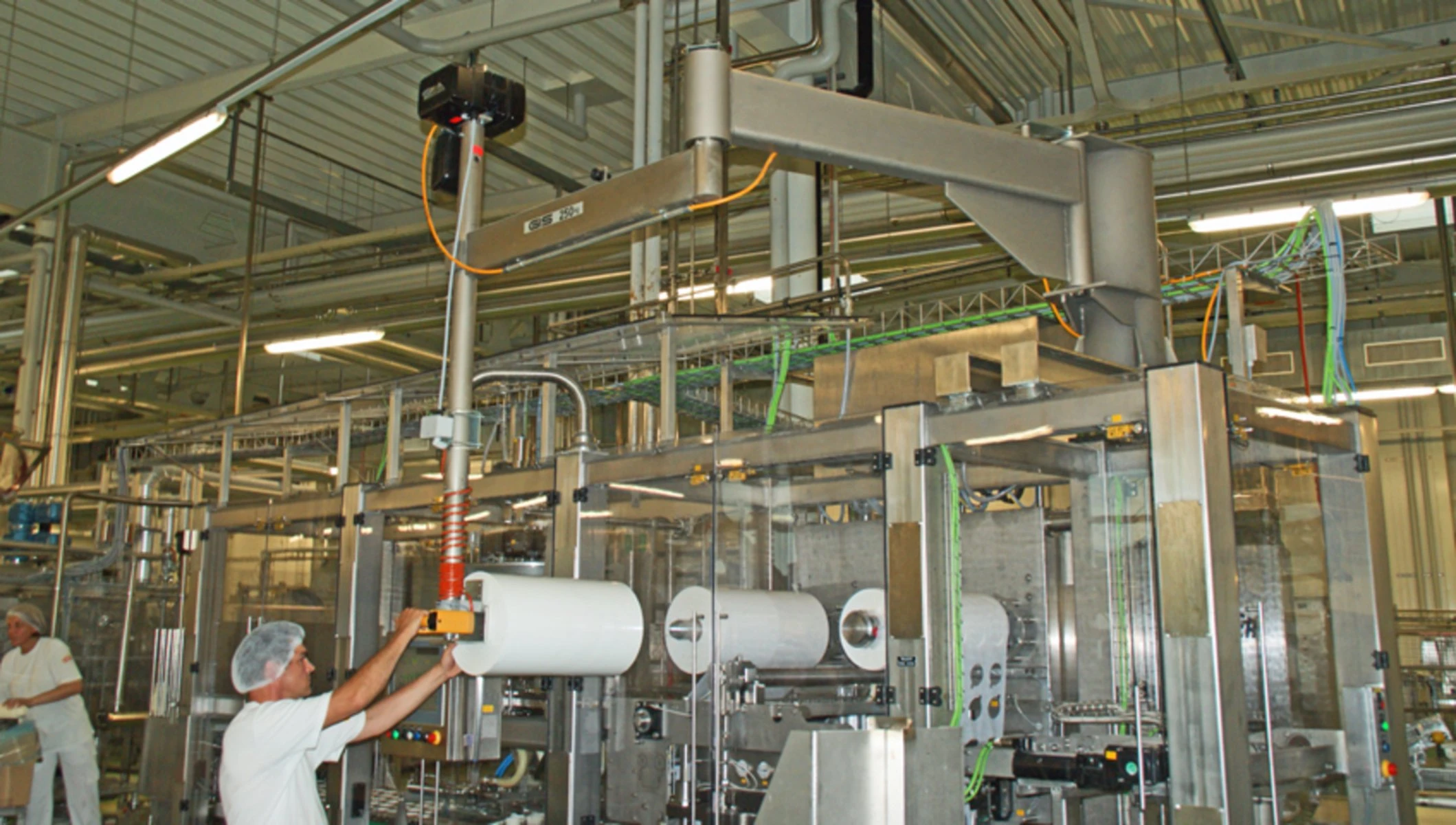

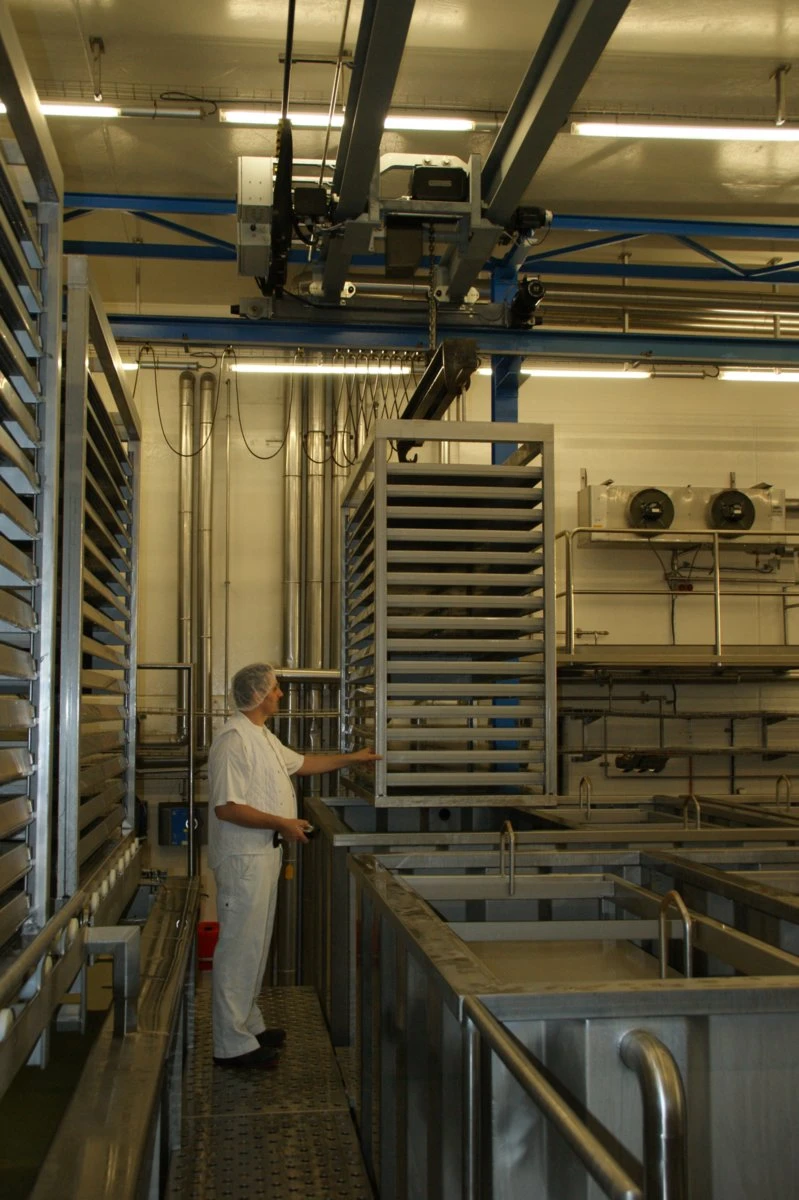

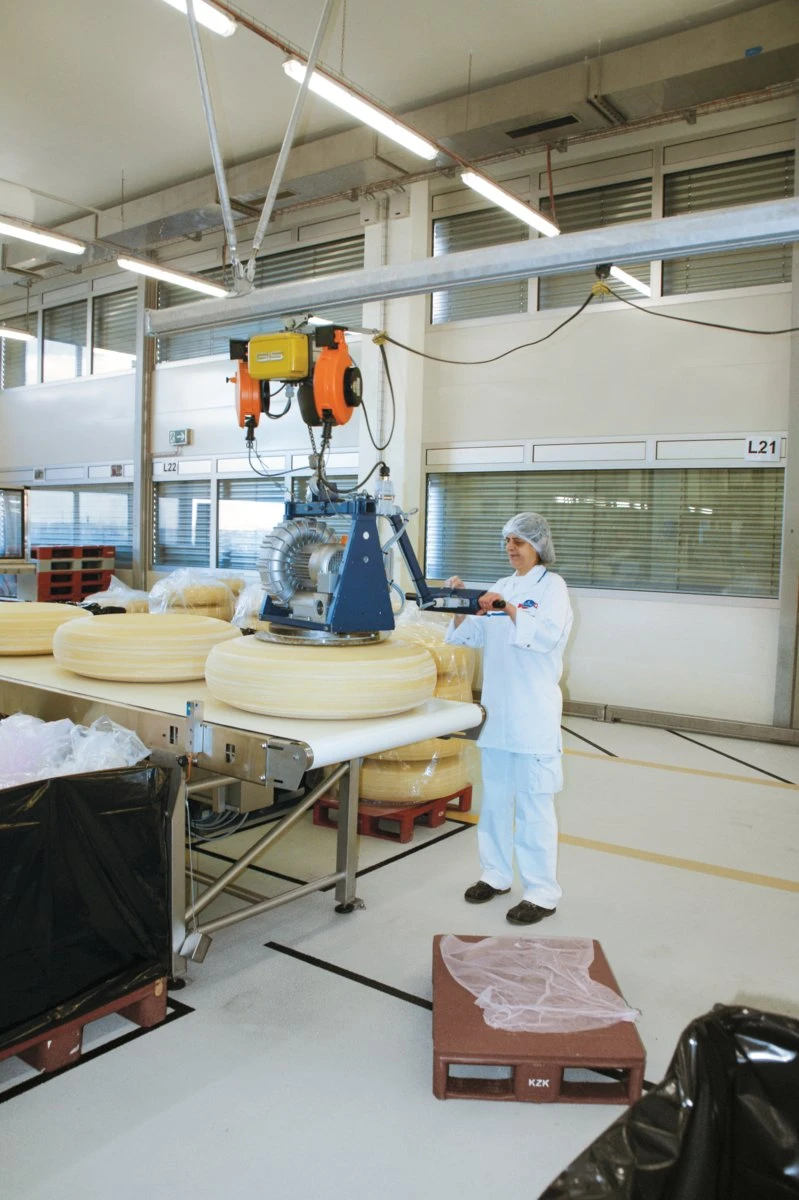

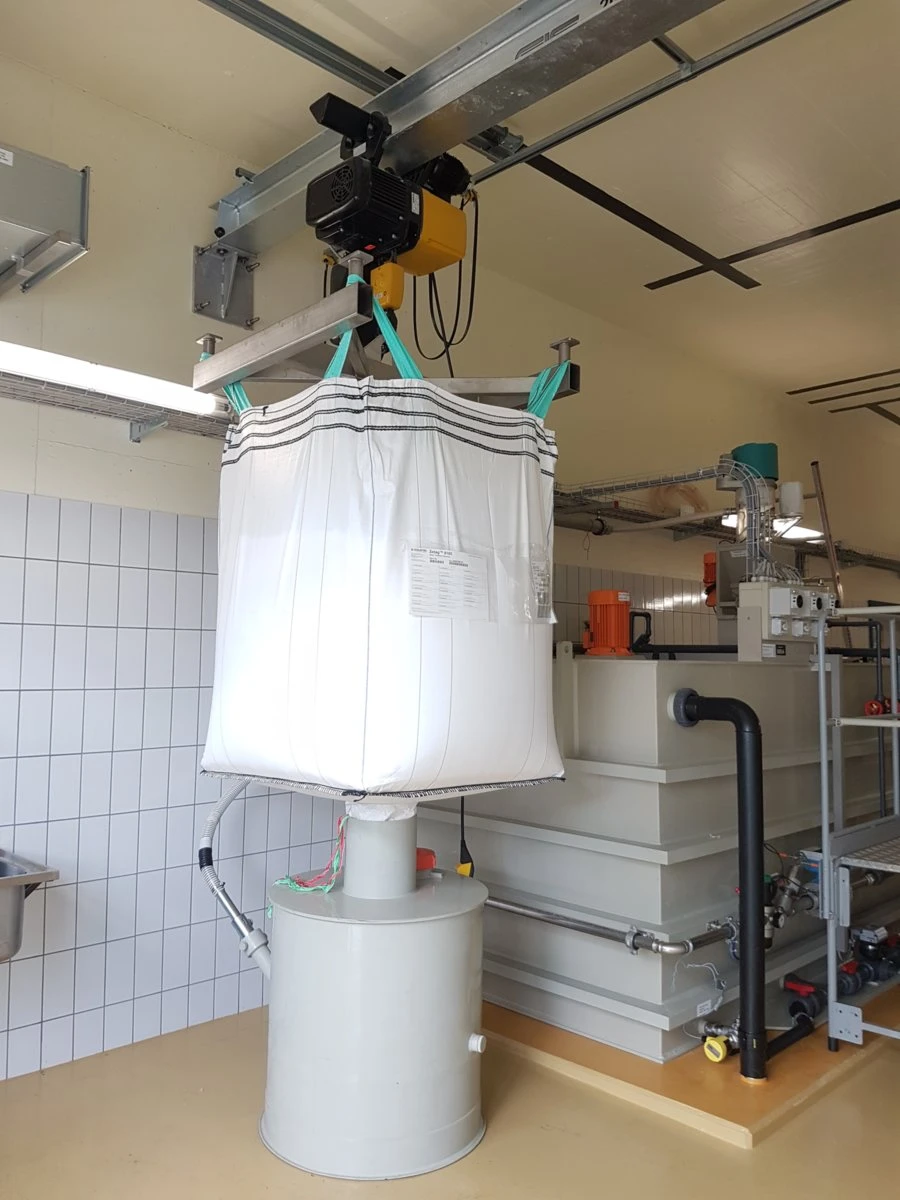

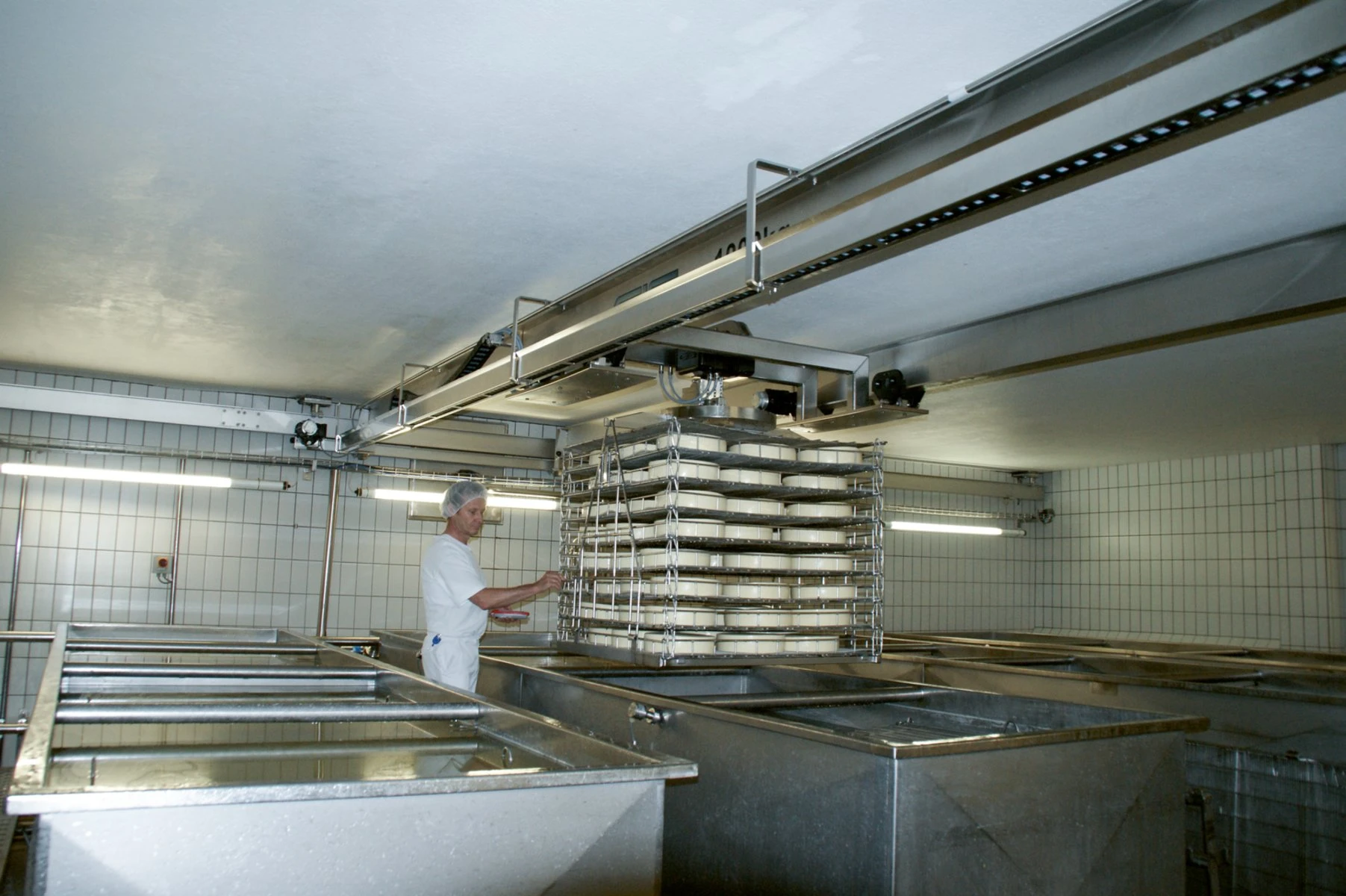

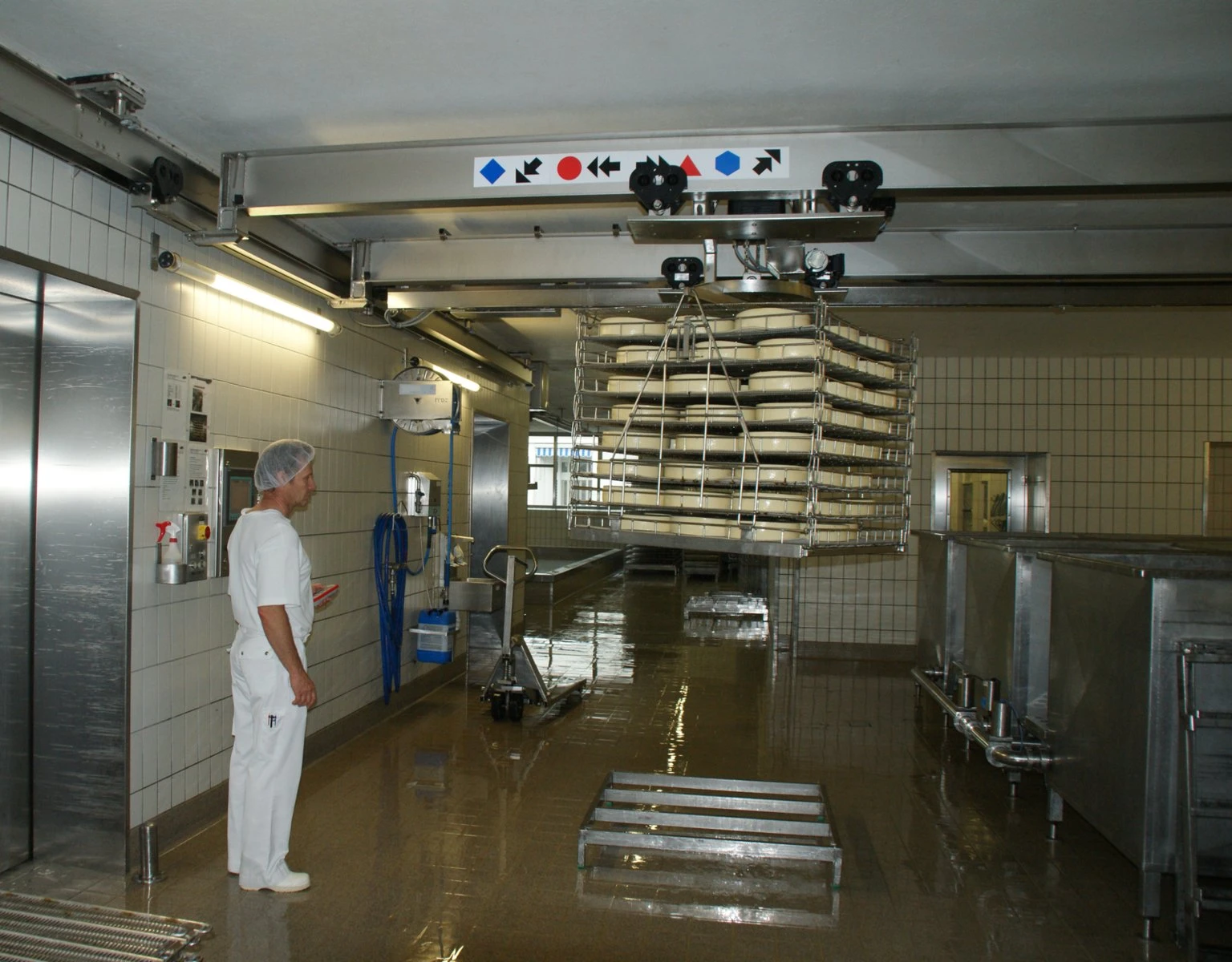

• chain hoist for use in the food, pharmaceutical or chemical industry, wastewater treatment plants, outdoor use
• housing with cataphoretic coating
• stainless steel round chain
• corrosion resistant chain hoist suspension
• all parts in contact with the chain (wearing parts such as sprockets, load hook, screws) in corrosion-resistant design
• protection class IP65
• special grease for the food industry
• option: overpressure relief valve
• option: manual or motorized trolley in corrosion-resistant version

Possible additional options:

• direct control, special control
• working and control voltages for all regions of the world
• limit switch with two additional safety stops
• parallel switching on of several chain cranes
• working hours counter
• temperature monitoring to protect the engine from overheating
• brake with manual release
• chain containers for different lifting heights
• suspension hook
• manual and electric suspension trolleys
• grease for low temperatures
• remote control
• frequency converter (inverter)
• ATEX version

Technical specifications:

• maximum Load capacity (1 or 2 chains): GPR500: 320/630kg, GPR1000: 630/1250kg
• standardni voltages: 3 × 400V/50Hz, 3 × 230V/50Hz, 1 × 115V/50Hz, 1 × 230V/50Hz
• 3-phase motor: 1 or 2 lifting speeds
• 1-phase motor: 1 lifting speed
• control: 42V low voltage control
• protection class: IP65
• suspension: suspension with eyebolt
• standard lifting height: 3m
• control switch: ergonomic control switch with emergency stop and external stress relief
• length of the control cable: 1.8 m
• limit switch: limit switches with gear for the highest and lowest position of the hook
• insulation class (engine): F
• brake: DC spring brake
• overload protection: sliding clutch adjustable and not in flow force

Special features:

• protection class IP65
• chain, suspension, double hook clamp, single hook clamp, chain guide and cargo hook made of stainless steel
• housing and covers KTL coating, resistant to water, oil, weak alkali and acid
• gear grease adapted for the food industry
