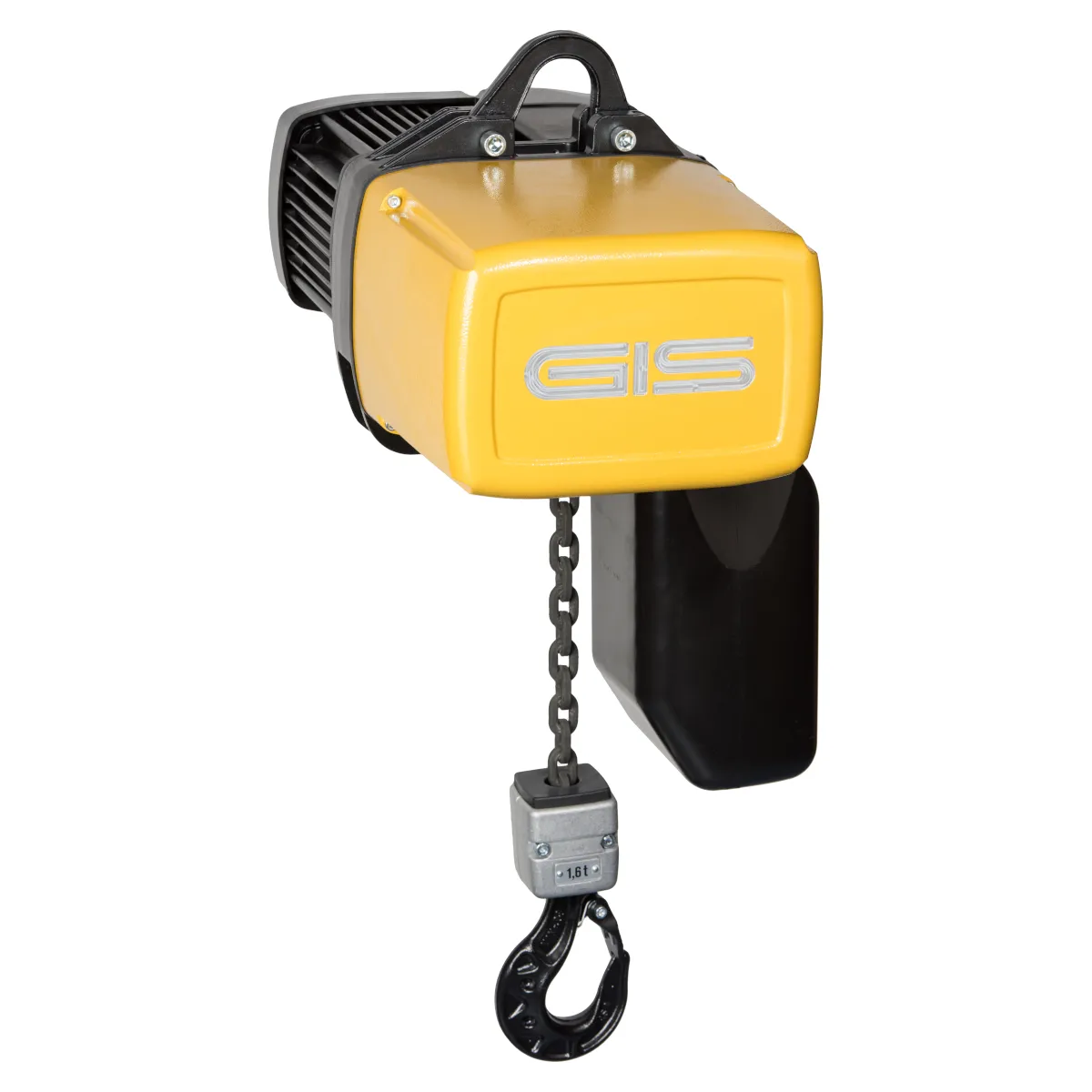

Electric Chain Hoist with Trolley 500-2500 kg

Electric chain hoist with trolley 500-2500kg

The GP series electric chain hoists have a simple design and do not contain sensitive electronics, which reduces the risk of production downtime. They are designed for intensive use, are very quiet, and have an extremely long working life. The ergonomic control button with a low voltage of 42 V enables comfortable and safe work. Maintenance is simple, quick and does not require special tools.

GIS electric chain hoists have been developed and manufactured in Switzerland for more than 60 years. GIS standard electric chain hoists offer an ideal solution for many industrial lifting applications. Depending on the complexity of the task and the conditions at the location, we offer special GIS products. A wide range of add-ons and options are available. Electric chain hoists and GIS carts meet the requirements of the EC Machinery Directive and the relevant ISO and EN standards.

Advantages

• designed for industrial use in the most extreme conditions
• 3 year warranty on all GP electric chain hoists
• the warranty is only valid if the operating conditions, inspection and maintenance intervals described in the operating instructions are observed
• 3-phase motor 400V 50Hz
• all GP chain hoists have standard IP65 protection
• insulation class F
• application range from -15 °C to +50 °C
• chain safety factor at least 8 times (DIN EN 14492 A5, ISO M5)
• steel chain made of manganese phosphated profile with extended service life and improved dry running properties
• independent gearbox with permanent lubrication
• increased safety and positioning accuracy with pioneering inverter technology and 42 V control
• FEM classifications: A3/M3 (25% ED), A4/M4 (30% ED), A5/M5 (40% ED), A6/M6 (50% ED), A7/M7 (60% ED)
• high FEM classification: A6/M6 for Load capacity up to 1600kg and 2 speeds (double speed)
• cranes have up to 60% more lifting capacity
• quiet operation with 3-speed drive and spiral gear
• Polygon connections ensure quick assembly and disassembly
• chain hoists in three-phase or single-phase version
• direct control, special control, radio remote control, frequency converter
• special versions such as synchronized electric chain hoist, low-profile version, corrosion-resistant version, ATEX
• extremely strong and wear-resistant black phosphated cargo chain
• extended life and reduced operating costs

Properties

• Load capacity od 500 do 2500kg
• standard lifting height 3m, control cable length 1.8m, chain and cable can be extended according to the customer's requests
• the inverter enables precise positioning of the load, is easy to use and requires minimal maintenance
• displacement limit switches for the highest and lowest position of the hook
• DC spring brake
• overload protection: the sliding clutch is adjustable and not in force
• the robust housing made of die-cast aluminum ensures optimal cooling of the crane
• motor thermal protection
• plastic, canvas or steel chain container
• control switch with 2 buttons with STOP button for emergency stop
• top suspension with hook: the mounting suspension is very easy to install and remove
• forged lower hook: the swivel hook eliminates twisting of the cargo chain
